Blueprint Desktop App

Run Blueprint.exe and follow the installation wizard. Once the installation is complete, launch the Blueprint application.

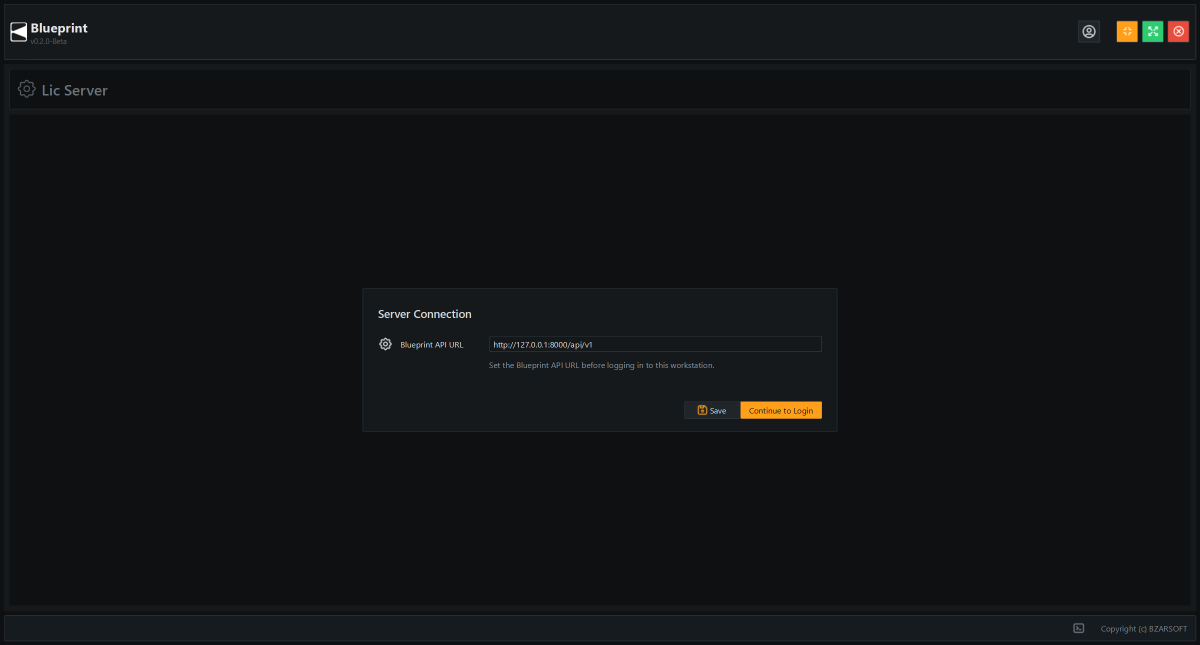

When Blueprint starts for the first time, it prompts you to configure the License Server connection. Enter the URL of the License Server you configured during server installation.

http://<server-ip-address>:<port>/api/v1

*If the License Server is installed on the same machine, the default local server address is usually sufficient.

Enter the License Server URL that this Blueprint workstation will use to communicate with the server.

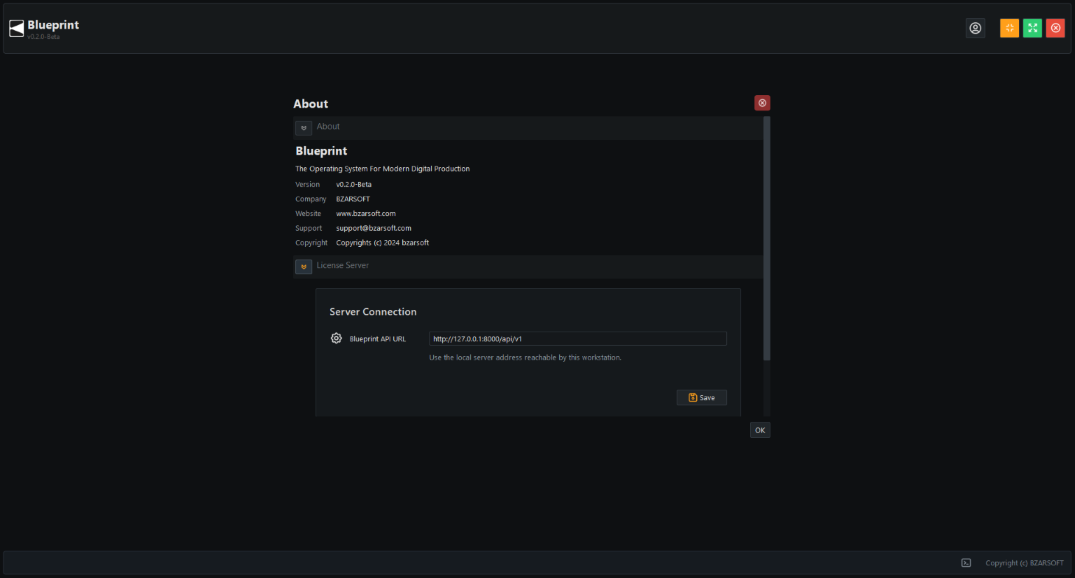

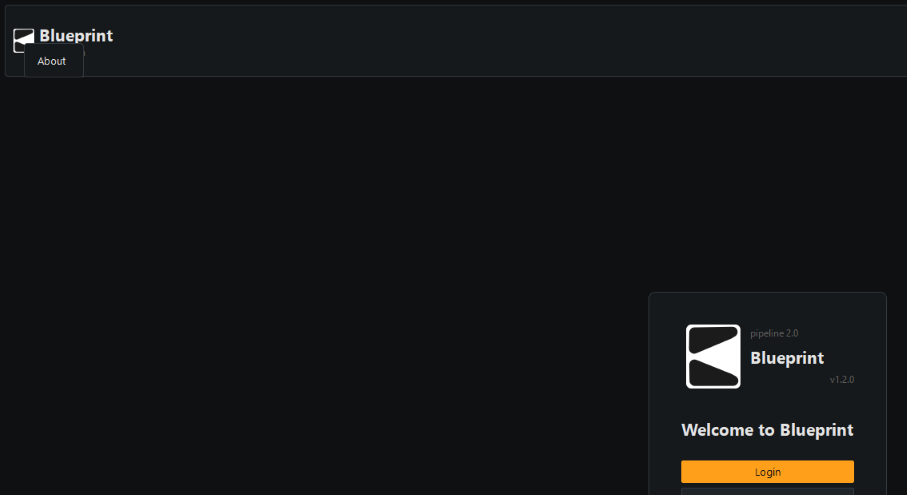

If the License Server configuration window does not appear automatically, click the Blueprint logo in the upper-left corner and select About.

Open the License Server tab to view or update the server connection settings at any time.

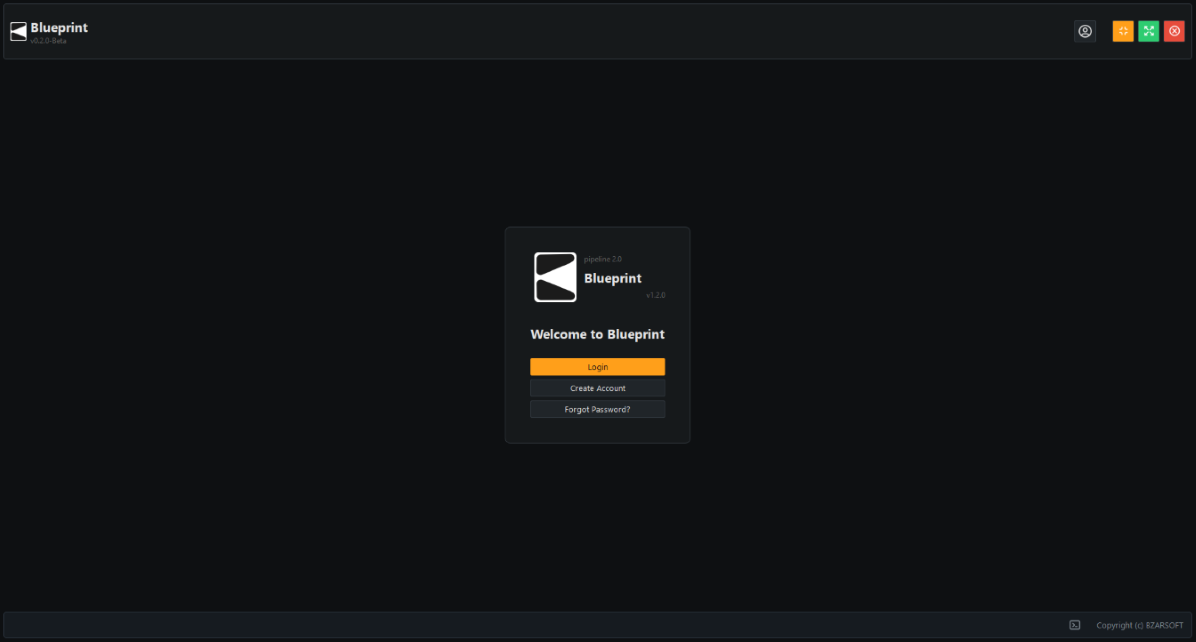

Once the License Server connection is configured, Blueprint displays the sign-in window.

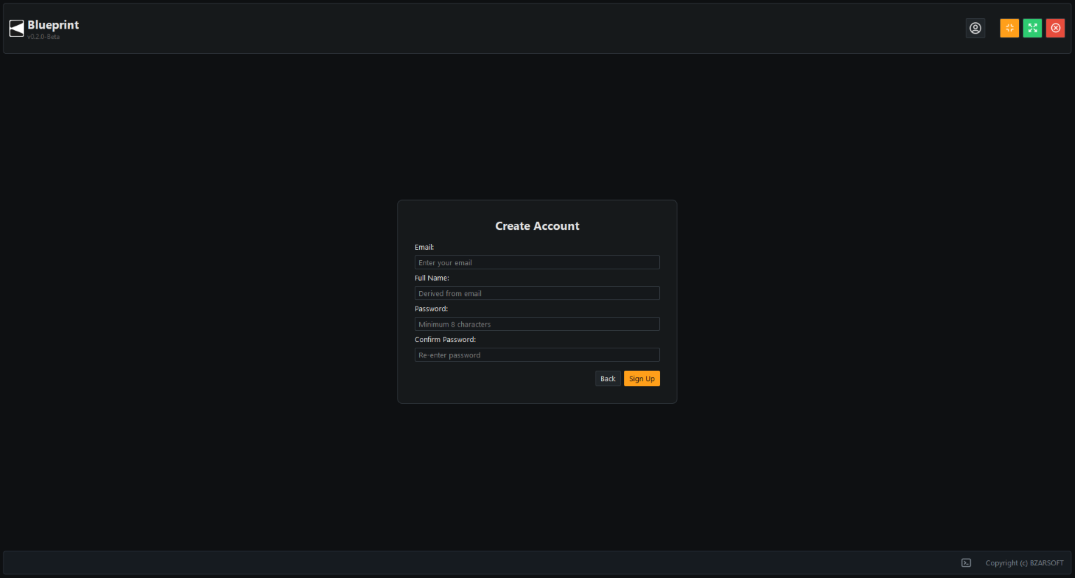

If you are using Blueprint for the first time, select Create Account. Enter your email address and password, then click Sign Up.

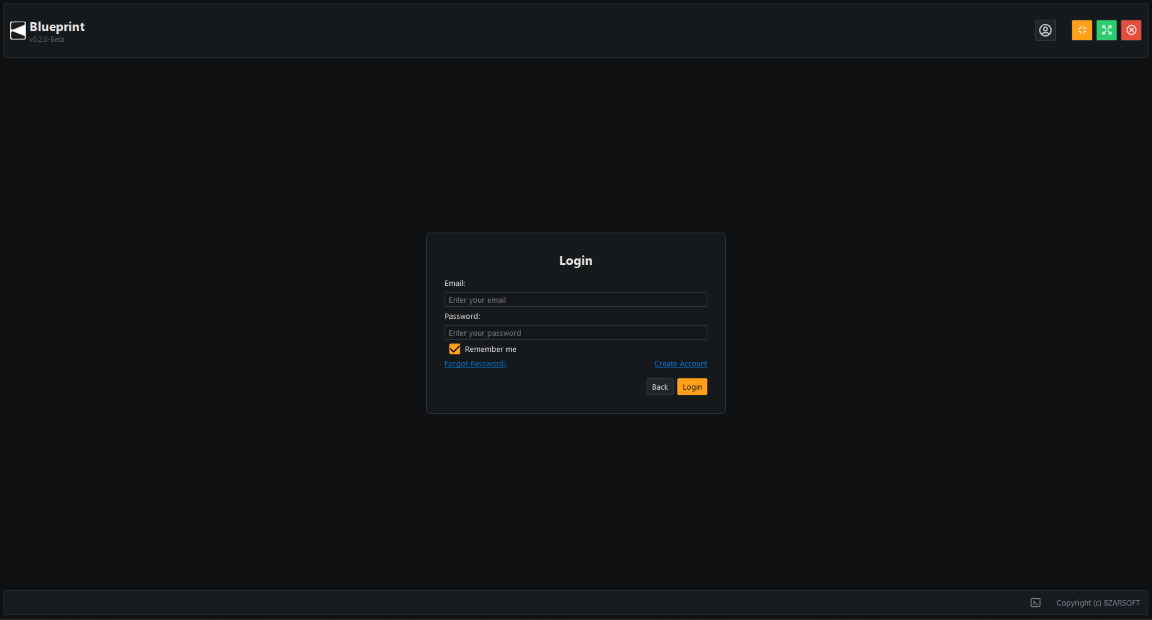

After creating your account, sign in using your email address and password.

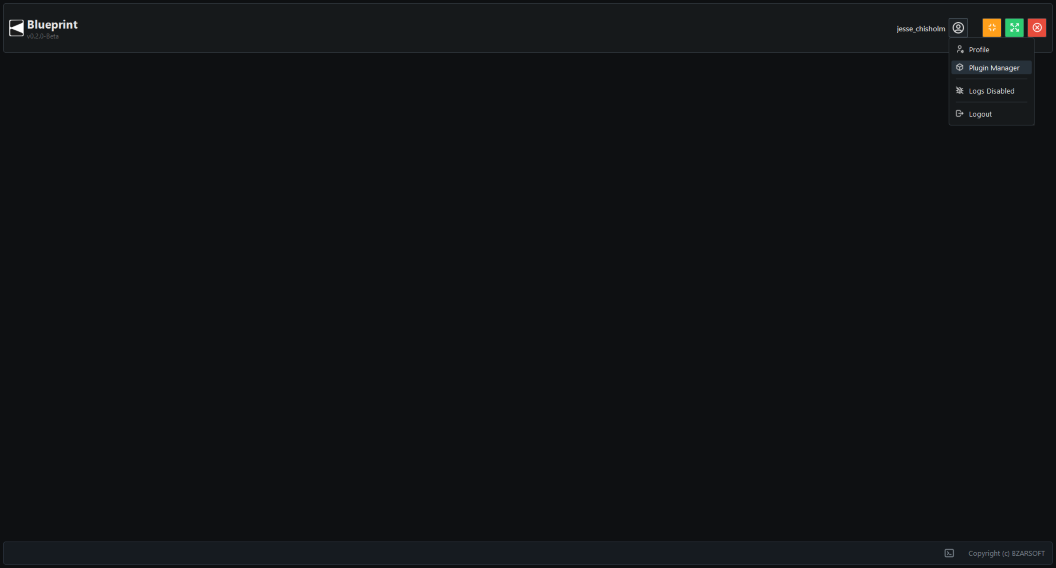

After signing in, Blueprint automatically loads the Browser plugin. If it is not loaded, open the User Menu and select Plugin Manager.

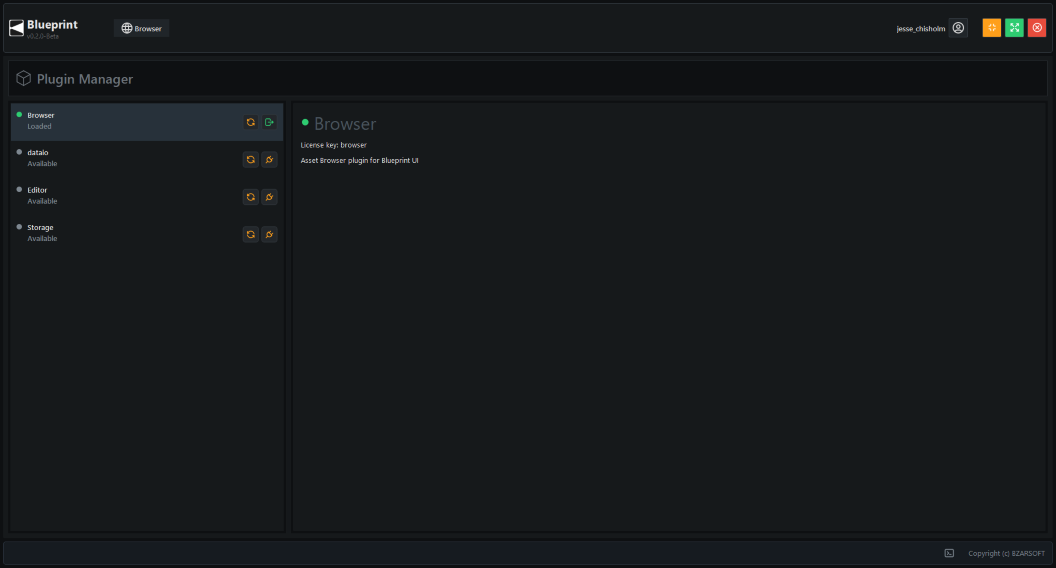

Click the yellow plugin icon to load a plugin. Once loaded, the icon turns green, indicating the plugin is active.

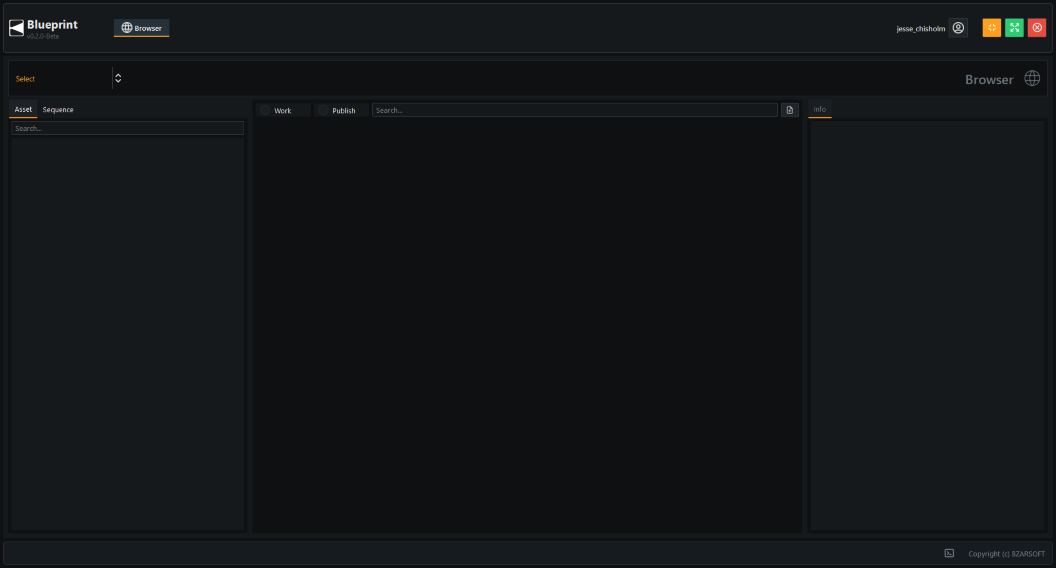

After the Browser plugin is loaded, click Browser in the top toolbar to open the Browser window.
